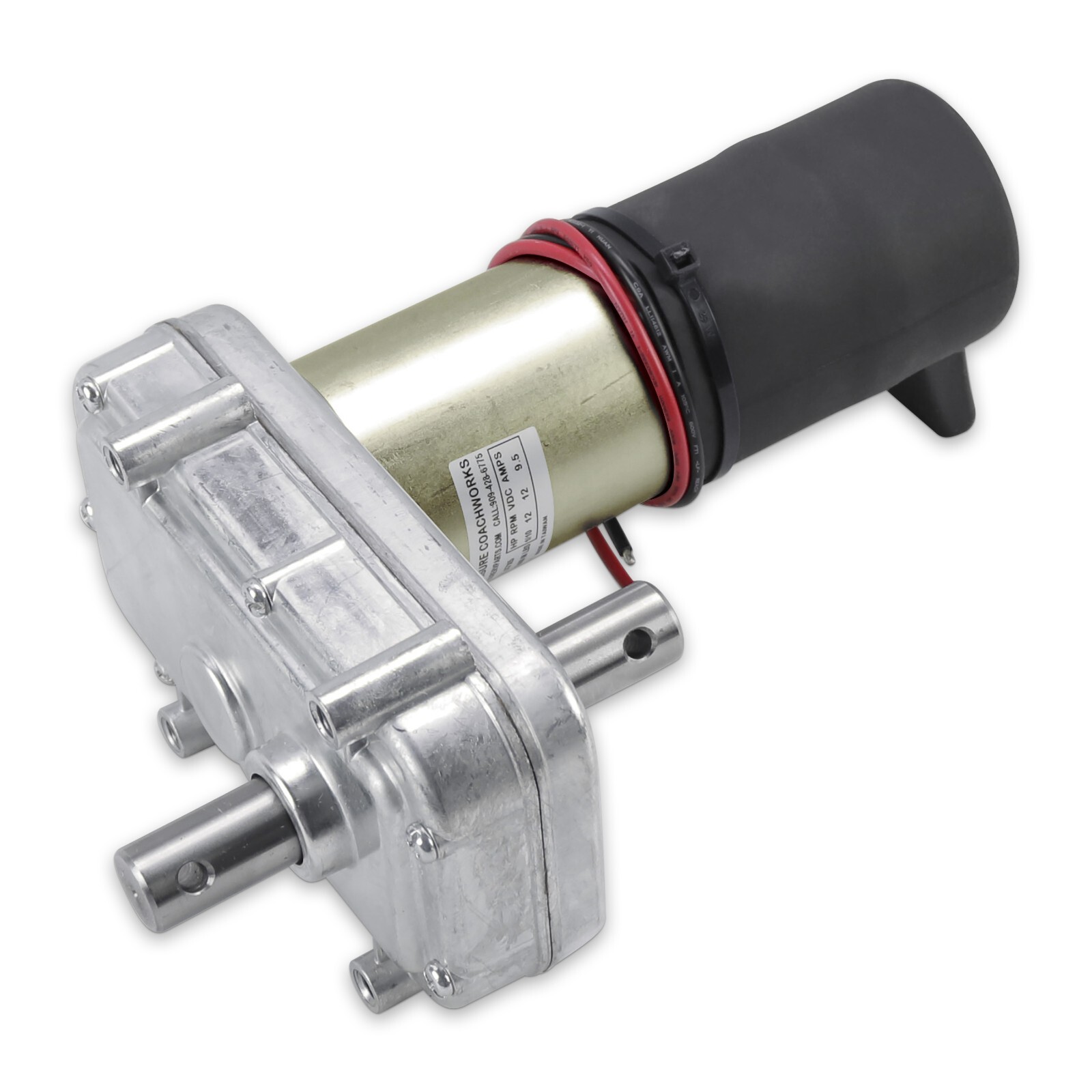

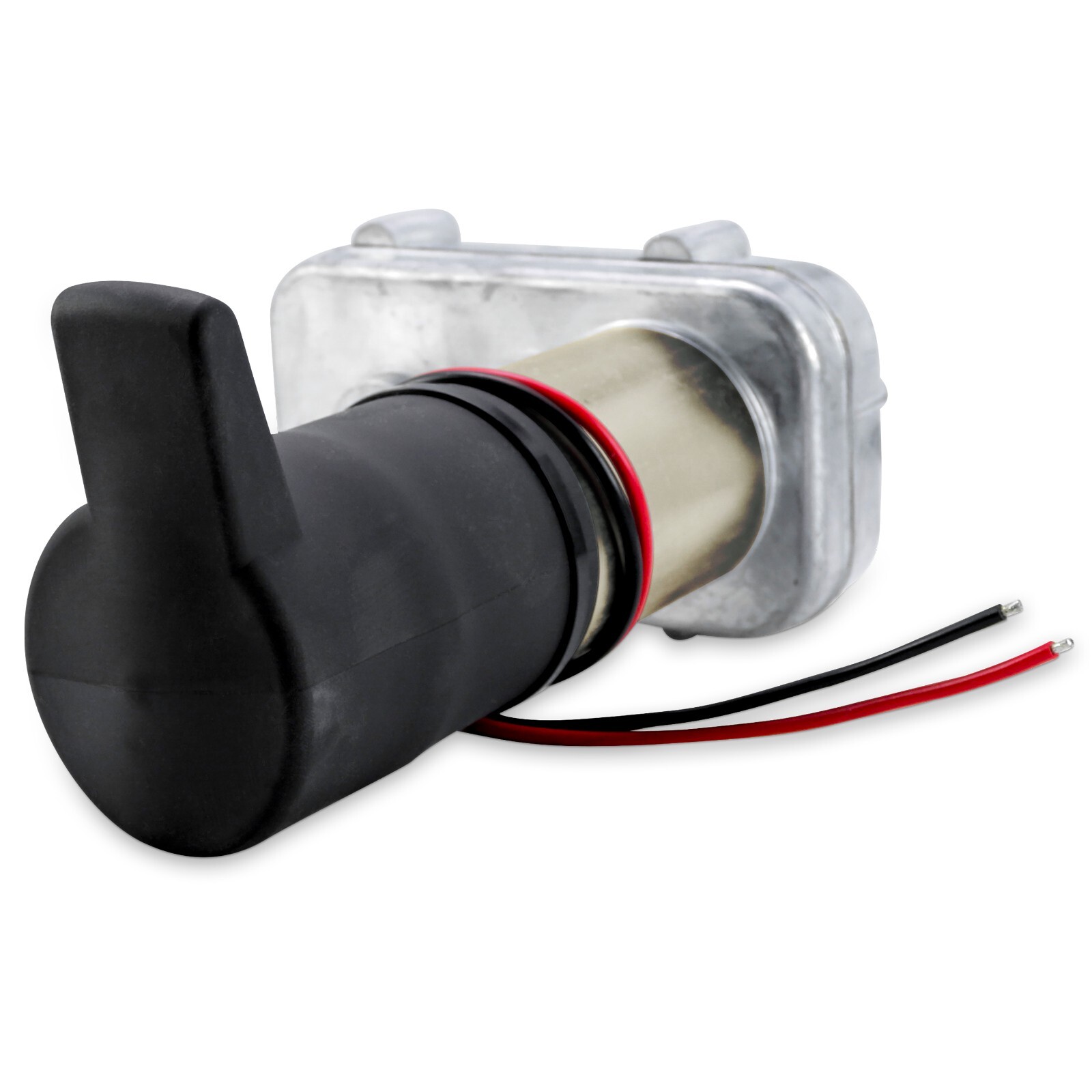

Power Gear 524327 RV Slide Out Motor – Maxi-Torque Dual Shaft without Pin
Specifications
| Brand | Leisure Coachworks |
| Warranty | 1 Year |
| Exterior Part Type | Slide Out |
| Manufacturer Part Number | LCW-X7X5 |
12 RPM 12V DC PARALLEL SHAFT GEARMOTOR, 523900 Replacement of the Power Gear Motor Free Shipping Ships Same Or Next Business Day ---Replacement for a Power Gear Motor ---New, permanent magnet, parallel shaft gearmotor. ---Cast aluminum gear housing and motor end cap with steel motor frame. ---12V DC electro-mechanical brake on rear of motor with manual release lever. ---Brand: Leisure Coachworks --- Replaces Power Gear motors: ---521976W, 521976, 523983, 524327, 524097, 520819, 522967, 523036, 523931, 524246, 523498, 523432, 523143, 523529, 524094, 52441 SPECIFICATIONS: ---Speed 9 RPM @ 850 in-lbs, 17 Amps ---12 RPM @ 400 in-lbs, 9.5 Amps ---14 RPM (no load) ---Voltage 12 DC ---Torque 850 in-lbs ---Holding Torque 500 in-lbs. ---Rotation Reversible ---Duty Intermittent.
